MODELS 4-1-C10 and 4-4-C10
Hydraulic Starters
Performance
(1.97 cubic inch per revolution gear motor)
| Maximum Operating Pressure |
3000 PSIG |
| Input Flow Required For 2400 RPM |
24 GPM |
| Recommended Cranking Speed *** |
2400 RPM |
| Maximum Cranking Speed (30 GPM) |
3000 RPM |
| Torque At Maximum Operating
Pressure |
68 FT LB |
| Maximum Speed at 1/8 Revolution* |
720 RPM |
| Minimum Speed at 1/8 Revolution* |
** |
*The inertia drive requires controlled
increase of flow from zero for
the first revolution of the motor (engine not
rotating). First 1/8 revolution is critical for
starter pinion reliability and life.
** Reliable engagement, or 240 RPM
*** Most applications
Recommended Engine Sizes
| Diesel
Engines |
250-700 cu.in.
4-11 liters |
Natural gas engines with high driven
loads such as compressors - use diesel recommendation
otherwise, consult factory.

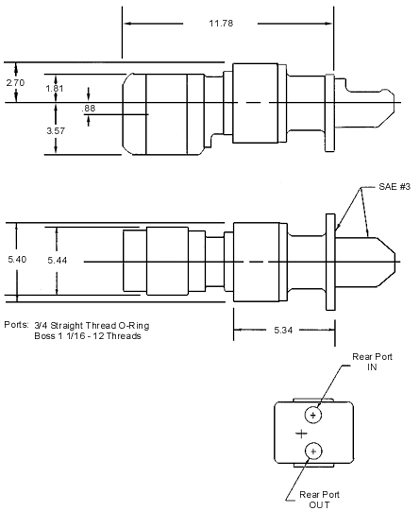

Dimensions (inches)
Drive Specifications
| Drive Housing
Mounting To Engine |
SAE #3 |
| Drive Housing Part
Number |
251-5 |
| Drive Part Number |
Model 4-1-C10 |
Model 4-4-C10 |
| 251-7-RH1 |
251-7-RH4 |
| Number Teeth |
Model 4-1-C10 |
Model 4-4-C10 |
| 11 on 12 Tooth
Blank |
12 on 13 Tooth
Blank |
| Pitch |
Model 4-1-C10 |
Model 4-4-C10 |
| 6/8 |
8/10 |
