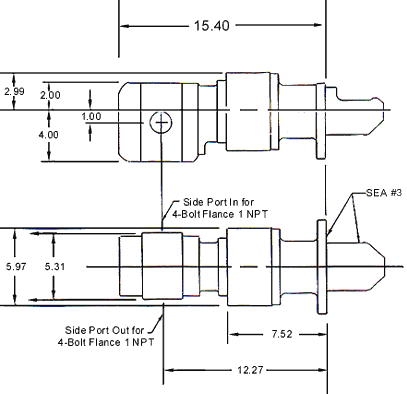

MODEL 2-C20
Performance (5.10 cubic inch per
revolution gear motor)
| Maximum Operating Pressure |
3000 PSIG |
| Input Flow Required For 2400 RPM |
60 GPM |
| Recommended CrankingSpeed *** |
2400 RPM |
| Maximum Cranking Speed (75
GPM) |
3000 RPM |
| Torque at Maximum Operating
Pressure |
183 FT LB |
| Maximum Speed at 1/8
Revolution* |
720 RPM |
| Minimum Speed at 1/8
Revolution* |
** |
*The inertia drive requires controlled
increase of flow from zero for the first revolution of the motor (engine
not rotating). First 1/8 revolution is critical for starter pinion
reliability and life.
** Reliable engagement, or 240 RPM
*** Most applications
Recommended Engine Sizes
| Diesel
Engines |
1000 - 6100 cu.in.
16 -
100 liters |
| Diesel Engines -
2 Starters |
6100 - 13,000 cu.
in.
100 - 200 liters |
Natural gas engines with high driven
loads such as compressors - use diesel recommendation
otherwise, consult factory.
Drive Specifications
| Drive Housing
Mounting To Engine |
SAE #3 |
| Drive Housing Part
Number |
301-5B |
| Drive Part Number |
301-9-RH3A |
| Number Teeth |
12 |
| Pitch |
6/8 |
